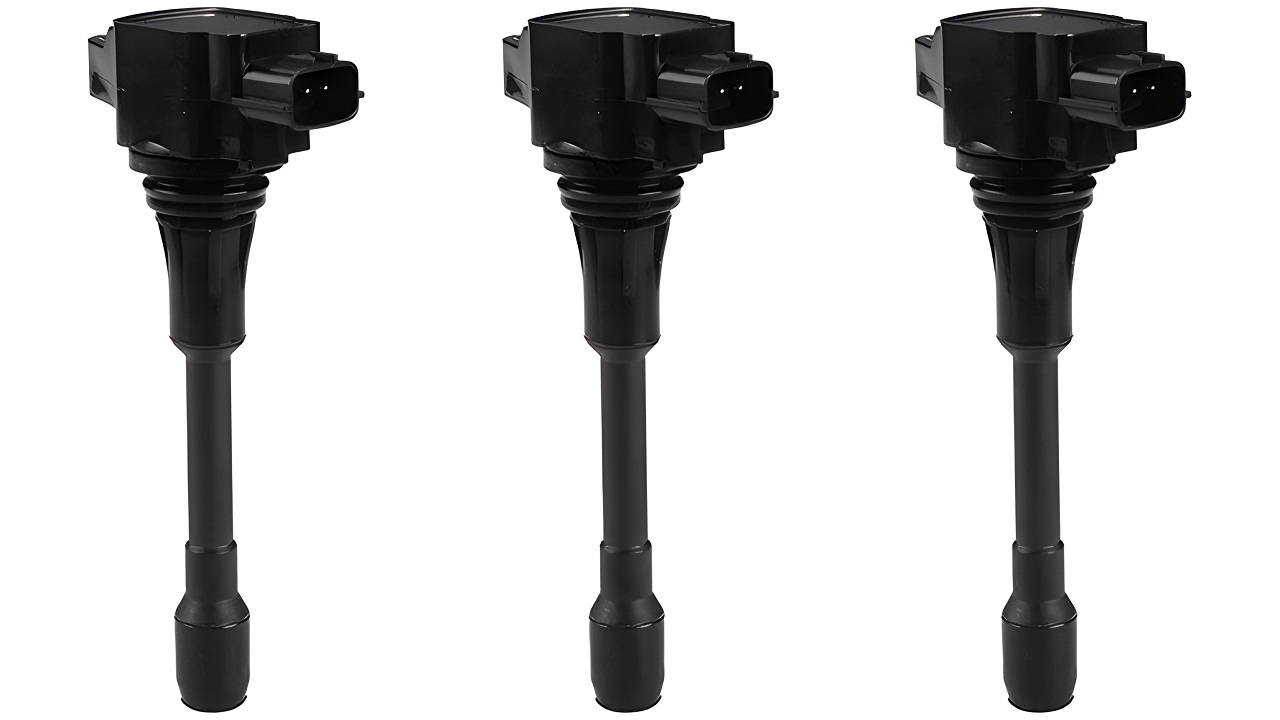

Understanding Ignition Coils: What They Are and How They Work

Understanding Ignition Coils: What They Are and How They Work

For more than a century, internal combustion engines have propelled vehicles and machinery. A key component of these engines is the ignition coil. The ignition coil may be small, but it plays a huge role in the engine by sparking the fuel and air mixture for combustion. This article will explain ignition coils and their function in producing the spark that ignites the fuel-air mixture in an internal combustion engine. If you want to know more about the A-Premium ignition coil, click the link.

Introduction to Ignition Coils

Ignition coils are electromagnetic devices that increase the battery voltage to produce the high-voltage electrical pulses needed to ignite the fuel/air mixture in the spark plugs. The combustion process of the vehicle’s propulsion begins when this spark ignites the fuel-air mixture in the cylinders.

Importance in Engine Performance

The ignition coil plays a crucial role in the effectiveness and efficiency of an engine. Misfires, decreased power, low fuel efficiency, and increased emissions are all possible results of an ignition coil that isn’t working properly. To keep the engine running smoothly, performing routine maintenance and promptly replacing faulty ignition coils is essential.

Basic Construction

The primary, secondary, and iron cores make up an ignition coil. Thicker wire is used for the primary coil, which has fewer turns, while finer wire is used for the secondary coil, wound many times around the primary coil. When current flows through the primary coil, the iron core strengthens the magnetic field embedded within the coils.

Operation Principle

The primary coil creates a magnetic field around the iron core when current flows from the battery through it when the ignition switch is activated. The energy of the coil is stored in the magnetic field. The ignition system is activated when the engine control unit (ECU) signals to cut power to the primary coil. Because of this unexpected break, the magnetic field quickly weakens.

Induction of High Voltage

Electromagnetic induction induces a high voltage in the secondary coil as the magnetic field rapidly decays. This high voltage can exceed thousands of volts, exceeding the original battery’s voltage. The resistance in the combustion chamber must be overcome by a strong spark created at the spark plug gap, so an increase in voltage is required.

Spark Generation

Spark plug wires carry the high voltage the secondary coil produces to the spark plugs. An electric spark is produced across the spark plug gap when the voltage reaches the spark plug. The compressed fuel-air mixture in the cylinder is ignited by the spark plug, resulting in combustion and the production of mechanical power.

Ignition Coil Types

Traditional single-coil systems and cutting-edge coil-on-plug (COP) systems are the two most common configurations for ignition coils. A distributor and a single ignition coil send high voltage from the coil to each spark plug. The COP system, on the other hand, uses individual ignition coils atop each spark plug to improve engine performance and efficiency by providing more precise control over ignition timing.

Diagnosis and Troubleshooting

A faulty ignition coil could cause issues like rough idling, sluggish acceleration, and low gas mileage. Diagnostic systems in today’s vehicles can track down ignition coil problems in this way. Using diagnostic equipment, mechanics can determine and replace which coil is malfunctioning.

Conclusion

Ignition coils are an internal combustion engine’s silent but crucial dance partner. Vehicles and machinery rely on them because they convert low to high voltage, creating the spark that starts the engine. The complexity of internal combustion engines and the technology that propels our world can only be grasped by learning how ignition coils function. Ignition coils, the “heart” of the engine, need to be serviced regularly to keep pumping out power reliably and efficiently.
